WooCommerce

In one line: Connect WooCommerce so your UnleashX agent can look up products, check and update orders, manage customers, and react the moment a new order comes in.


Category	Commerce
Authentication	Consumer Key + Consumer Secret (REST API)
Setup time	~5 minutes
Difficulty	Medium
Best for	WooCommerce stores that want an AI agent to answer order and product questions, update order status, and keep customer records tidy

1. Overview

WooCommerce is the commerce plugin that turns a WordPress site into an online store — products, categories, orders, and customers all live in your own WordPress database and are exposed through the WooCommerce REST API. Once connected to UnleashX, your agent can browse and search your catalog, create and update products, look up an order by ID or by the customer’s phone number, move an order to a new status, and create or find customers. Four triggers let a workflow start the moment a new order, product, customer, or coupon appears. Connecting WooCommerce to UnleashX means the store answers for itself: a shopper asks “where’s my order?” and the agent checks it live, a new order fires a workflow, and support stops copy-pasting from wp-admin.

2. What you’ll need

A WordPress site with the WooCommerce plugin active, served over HTTPS.
Your Store URL — the site’s home address, e.g. https://yourstore.com (no trailing slash).
An administrator (or shop manager) account on that WordPress site.
A Consumer Key (ck_…) and Consumer Secret (cs_…) generated from WooCommerce’s REST API screen.

Pretty permalinks must be enabled (Settings → Permalinks → anything other than “Plain”), otherwise the WooCommerce REST API returns 404 on every request.

No admin access? Ask your store owner to generate a Read/Write API key and share the Store URL, Consumer Key, and Consumer Secret with you.

3. Get your credentials

WooCommerce authenticates with a Consumer Key / Consumer Secret pair. Both are generated together in one step inside WordPress admin.

Find your Store URL

Open WordPress general settings

In WordPress admin, go to Settings → General.

Copy the site address

Copy the value in the WordPress Address (URL) field and remove any trailing slash — e.g. https://yourstore.com.

If WooCommerce lives in a subfolder or subdomain (e.g. https://yourstore.com/shop), use that exact base. UnleashX appends /wp-json/wc/v3 itself.

Generate the Consumer Key and Secret

Open the REST API screen

Sign in at https://yourstore.com/wp-admin, then go to WooCommerce → Settings → Advanced → REST API and click Add key.

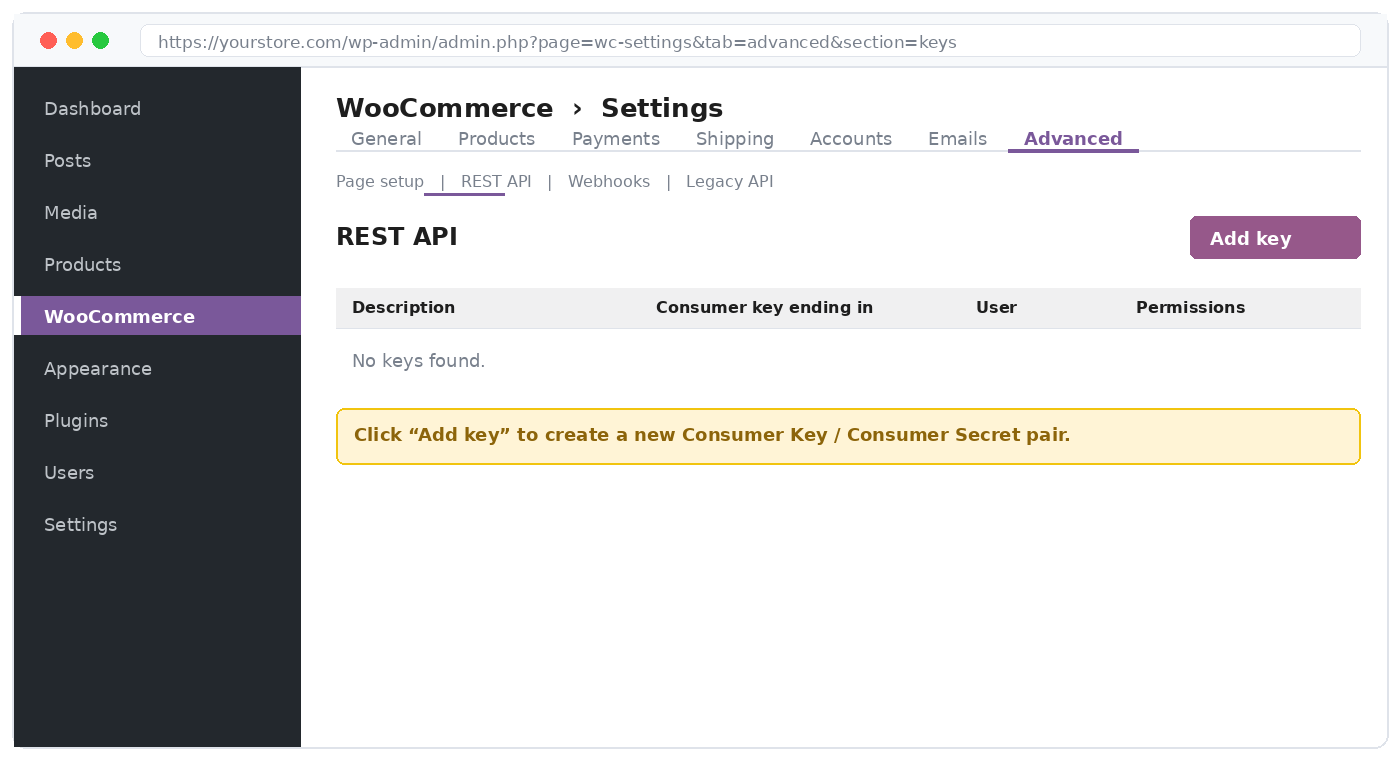

WooCommerce Settings → Advanced → REST API → Add key

Set the key details

Description — something you’ll recognise later, e.g. “UnleashX”.
User — an admin or a dedicated integration user. The key acts as this user.
Permissions — Read/Write (choose Read if your agent only needs to look things up).

Then click Generate API key.

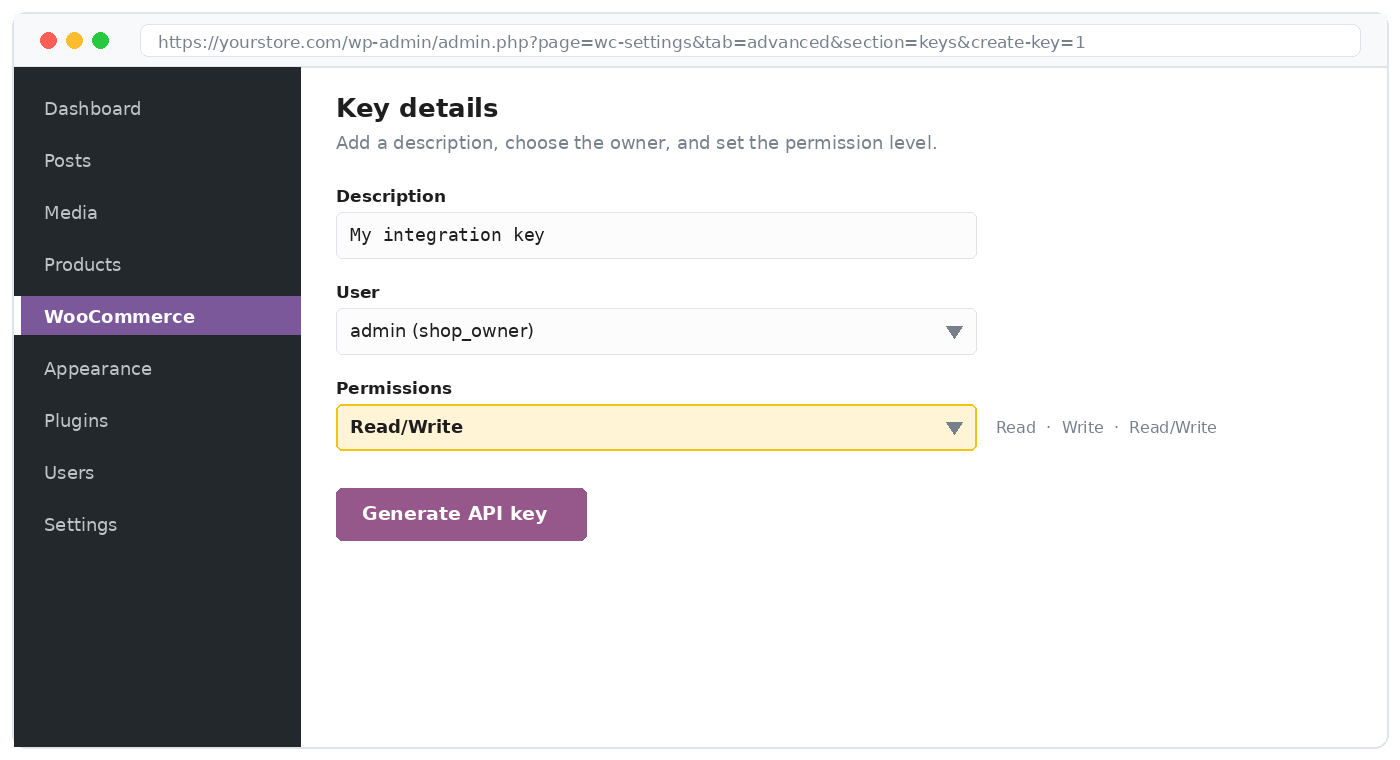

Key details: description, owning user, and permission level

Copy both values

WooCommerce shows the Consumer key (ck_…) and Consumer secret (cs_…). Copy both and store them in your password manager.

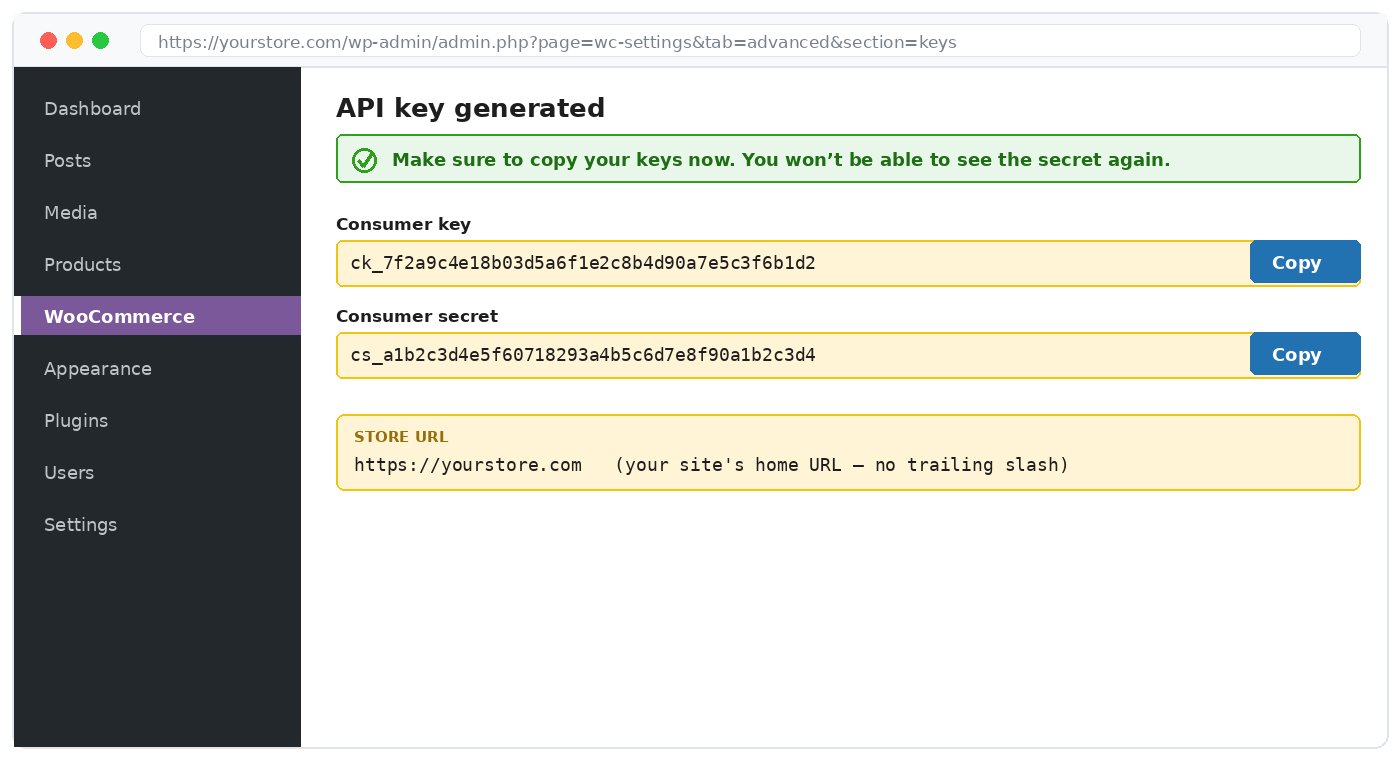

Consumer key and secret — copy the secret now, it can't be retrieved later

The Consumer Secret is displayed only on this screen. If you lose it you can’t recover it — revoke the key and generate a new one.

What the credentials can access

Permission	Why UnleashX needs it
Read products & categories	List, search, and fetch product details
Write products	Create, update, and delete products
Read orders	List orders, look one up by ID or customer phone
Write orders	Create an order and change its status
Read & write customers	List, search, fetch, and create customers
Read payment gateways	List the store’s available payment methods

Permissions come from the key, not from the tool. A Read key makes every write tool fail with 401 — use Read/Write if you want the agent to create products, orders, or customers.

Quick test (optional)

Confirm the pair works before connecting, by opening this in a browser with your values substituted:

https://yourstore.com/wp-json/wc/v3/products?consumer_key=ck_…&consumer_secret=cs_…

A JSON list of products (or an empty array) means the key is valid. A 401 means the key or secret is wrong; a 404 usually means permalinks aren’t set to a pretty format.

4. Connect on UnleashX

Open your agent

Open Data Connectors

In the agent, go to Data Connectors and locate WooCommerce.

Fill in the four fields

Click Connect / Add / Configure and complete the form.

Field	What to enter
Store URL	Your store’s address, e.g. `https://yourstore.com` — no trailing slash, no `/wp-admin`.
Consumer Key	The `ck_…` value from Section 3.
Consumer Secret	The matching `cs_…` value.
Account Name	A label for this connection inside UnleashX (e.g. “Main store”). This is just for you; it doesn’t affect WooCommerce.

Confirm

Save. The status will switch to a Connected badge and your agent can start working with the store.

Never expose ck_/cs_ in client-side code. Give each integration its own key so you can revoke one without affecting the others.

Use WooCommerce in a Workflow

Once connected, you can add WooCommerce to any automation from the Workflows builder. Its triggers and tools appear in the Apps panel, marked with an MCP badge.

Add a trigger node

Open Workflows → New Workflow. On the canvas, click + Add Trigger. In the Paths panel, open the Apps tab and select WooCommerce — its Triggers are listed underneath. Use the search box if you have many connectors.

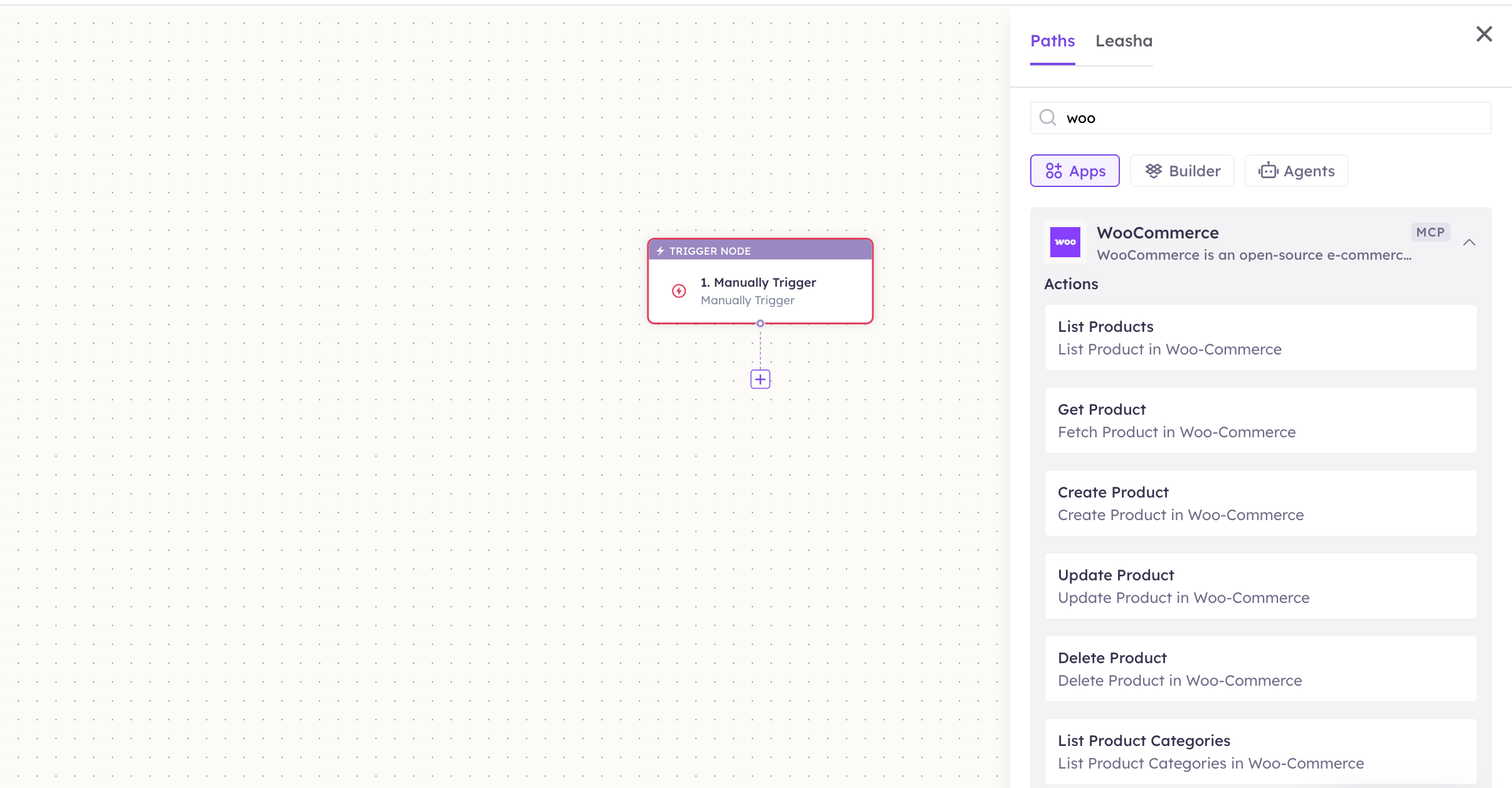

Add an action node

Click the + below any node to add a step, then pick WooCommerce again — this time the panel lists its Actions.

Configure the step

Fill in the fields for the trigger or action you picked. Required fields are marked with a red asterisk (*).

Add or select your account

Under Selected account, choose an already-connected account, or click Add Account to connect one now.

Save and test

Click Save. Use Test to verify the step, then toggle Publish when the workflow is ready.

The steps are the same for every connector. For the full workflow builder guide, see Using MCP in Workflows.

5. Available tools

Tools are listed the way they appear in the Workflows Apps panel. The Tool ID is what the agent calls behind the scenes. Products

Tool	Tool ID	What it does	Required	Changes data?
List Products	`list_products`	Lists products in the store	—	No
Get Product	`get_product`	Gets a single product by ID	`product_id`	No
Create Product	`create_product`	Creates a new product	`name`	✏️ Yes
Update Product	`update_product`	Updates an existing product	`product_id`	✏️ Yes
Delete Product	`delete_product`	Deletes a product	`product_id`	⚠️ Yes
List Product Categories	`list_product_categories`	Lists all product categories	—	No
Get Products by Category	`get_products_by_category`	Lists products within one category	`category_id`	No

Orders

Tool	Tool ID	What it does	Required	Changes data?
List Orders	`list_orders`	Lists orders; supports search, including phone-number lookup	—	No
Get Order	`get_order`	Gets a single order by ID	`order_id`	No
Create Order	`create_order`	Creates an order for a customer	`customer_id`	✏️ Yes
Update Order Status	`update_order_status`	Moves an order to a new status	`order_id`, `status`	✏️ Yes

Customers

Tool	Tool ID	What it does	Required	Changes data?
List Customers	`list_customers`	Lists customers	—	No
Get Customer	`get_customer`	Gets a single customer by ID	`customer_id`	No
Create Customer	`create_customer`	Creates a customer record	`customer_name`, `email`	✏️ Yes
Search Customers	`search_customers`	Searches customers by name or email	`search`	No

Store

Tool	Tool ID	What it does	Required	Changes data?
List Payment Gateways	`list_payment_gateways`	Lists the store’s available payment methods	—	No

Triggers

Trigger	Trigger ID	Fires when
On New Order	`on_new_order`	A new order is placed
On New Product	`on_new_product`	A new product is added
On New Customer	`on_new_customer`	A new customer registers
On New Coupon	`on_new_coupon`	A new coupon is created

6. Example usage

“Where’s my order? My number is +91 98765 43210.” Runs List Orders with the phone number as the search term, then Get Order for the match. “Mark order 1042 as completed.” Runs Update Order Status with order_id: 1042 and status: completed. “What do we have in the Accessories category, and is the leather wallet in stock?” Runs List Product Categories → Get Products by Category → Get Product. “When a new order comes in, message the customer on WhatsApp with the order summary.” A workflow starts on the On New Order trigger and chains into your messaging connector.

7. Permissions & data access

UnleashX CAN:

Read products, categories, orders, customers, and payment gateways.
Create and update products, orders, and customers.
Delete products.
Start workflows on new orders, products, customers, and coupons.

UnleashX CANNOT:

Do anything the API key’s permission level doesn’t allow (a Read key can’t write).
Take payments or refund an order.
Touch WordPress content, plugins, themes, or site settings — that’s the separate WordPress connector.
Access any store other than the one you connected.

To disconnect: In UnleashX, open your agent → Data Connectors → WooCommerce → Disconnect. To fully revoke access, go to WooCommerce → Settings → Advanced → REST API in wp-admin and revoke the key. Either action stops access immediately.

8. Troubleshooting

Problem	What it means	How to fix it
`401 Unauthorized`	Wrong Consumer Key/Secret, the key was revoked, or it’s Read-only on a write tool	Re-check both values; regenerate with Read/Write if the agent needs to write
`404 Not Found`	Permalinks are set to “Plain”, or the REST API is blocked	Set Settings → Permalinks to any pretty format, then retry
Every request fails over HTTP	Credentials aren’t sent over plain HTTP by many hosts	Serve the site over HTTPS
`403 Forbidden`	A security plugin or firewall is blocking `/wp-json/`	Allowlist the REST API route in the plugin or at the host
Order lookup returns nothing	The phone number is stored in a different format	Search with the digits only, or look the customer up first with `search_customers`
Wrong store data	The Store URL points at the wrong site or a subfolder	Use the exact base URL — UnleashX appends `/wp-json/wc/v3` itself

For general connector issues, see /mcp/integrations.

9. Frequently asked questions

Is my store data stored by UnleashX? No. Tools call your WooCommerce REST API live with your credentials and return the result. UnleashX doesn’t keep a copy of your catalog, orders, or customers. Can the agent take payments? No. It can read the available payment gateways and create or update orders, but payment is handled by your store’s checkout. Can I connect more than one store? Yes. Generate a key per store and add each as its own connection, using Account Name to tell them apart. How do I rotate my key? Generate a new key in WooCommerce → Settings → Advanced → REST API, update it in UnleashX, then revoke the old one. Do I also need the WordPress connector? Only if you want the agent to handle posts, categories, users, or media. Products, orders, and customers are all covered here.

10. References

WooCommerce REST API docs: https://woocommerce.github.io/woocommerce-rest-api-docs/
Generating REST API keys: https://woocommerce.com/document/woocommerce-rest-api/
WordPress permalink settings: https://wordpress.org/documentation/article/customize-permalinks/
